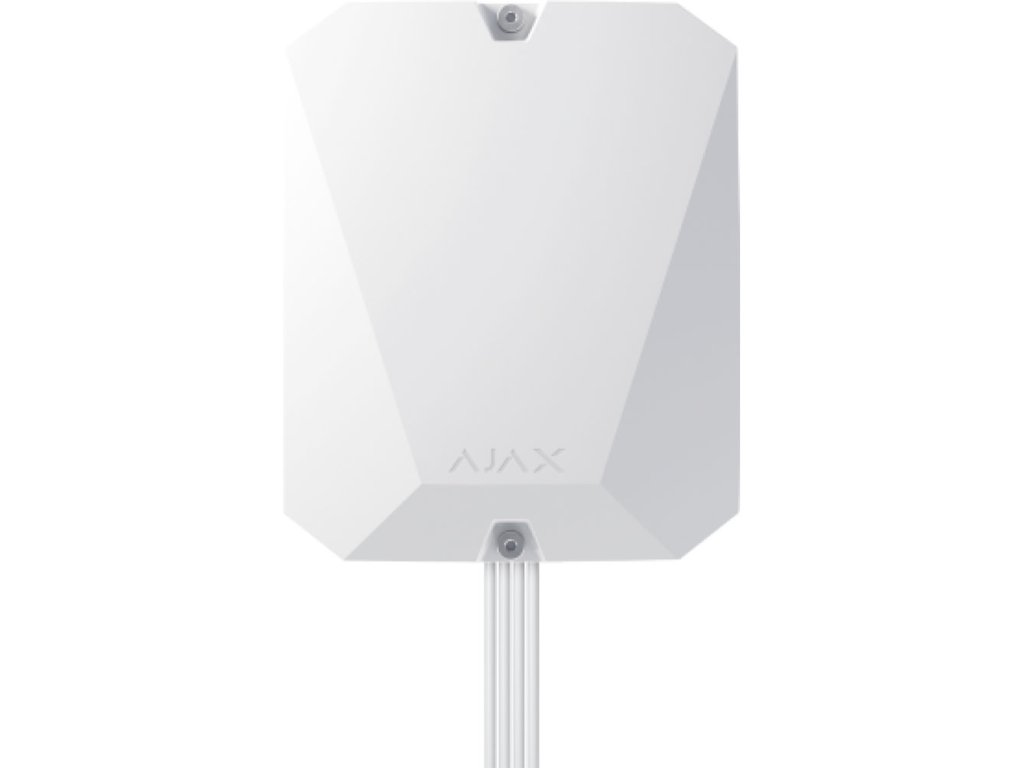

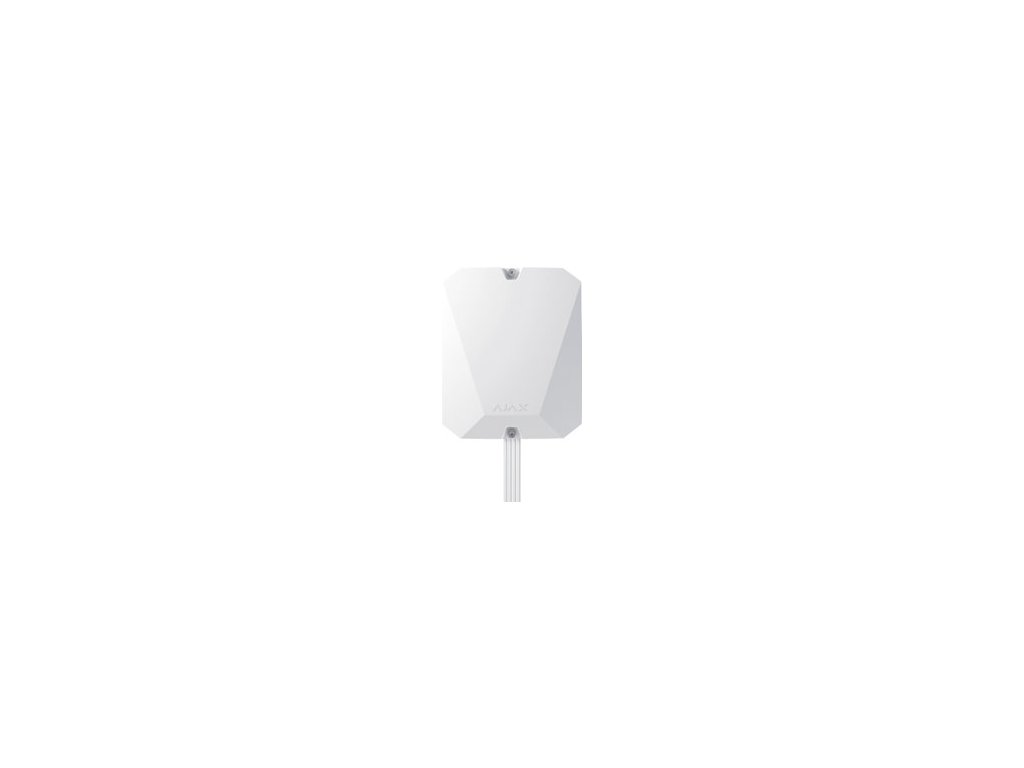

AJAX FIBRA HUB HYBRID 2G WH
Kód: 038756Podrobný popis
Poplachová ústredňa, hybridná, s integrovanou LAN a 2xSIM GSM/GPRS, až 100 zariadení, 9 skupín (sekcií), 32 scenárov, 50 užívateľov, 50 miestností, 230VAC, záložná batéria 12V/7Ah nie je súčasťou balenia, podpora VIDEO, podpora MOTIONCAM, bielaRozdiely medzi Hub Hybrid modelmi:
Hub Hybrid (2G)
✔ Podpora 2G
✔ Certifikácie: EN 50131 (Grade 3), PD 6662:2017, INCERT, NIST, NFA2P
Hub Hybrid (4G)
✔ Podpora 2G, 3G a 4G/LTE
✔ Certifikácie: EN 50131 (Grade 3), PD 6662:2017, INCERT, NIST, SSF, NFA2P
Hub Hybrid (4G) – verzia bez krytu
✔ Dodávaný ako doska bez krytu, určený na inštaláciu do Case D (430)
✔ Podpora 2G, 3G a 4G/LTE
✔ Integrované interné antény pre rádiovú a mobilnú komunikáciu + možnosť pripojenia ExternAntenna pre náročné prostredia
✔ Vstavaný interný tamper + podpora pripojenia externého tampera
✔ Dodávaný s externou LED doskou
✔ Certifikácie: EN 50131 (Grade 3), PD 6662:2017, NIST
Dodatočné parametre
| Kategória: | Poplachové ústredne |
|---|---|
| CMS Event: | IP/GPRS 1 + 1 IP address |
| Manufacturer: | Ajax |
| Max number of zones - total: | 100 |
| Number of installed wireless zones: | 100 |
| Private call: | SMS / Call (requires SIM card) |
| Report formats on CDS: | Ajax Translator, SIA-IP |
| Safety degree: | Grade 2 |
| SMS: | Yes |
| Technology: | Hybrid |
| Total number of access codes: | 50 (app) |
| Total number of partitions: | 9 |
| Version: | Modular |
| Video verifications of alarm events: | Yes |
| Wireless communication: | Two-way |
| Wireless frequency: | 868 MHz |
| Manufacturer: | AJAX |
| Technology: | Hybrid |
| Version: | Modular |
| Number of installed wireless zones: | 100 |
| Max number of zones - total: | 100 |
| Total number of partitions: | 9 |
| Wireless frequency: | 868 MHz |
| Wireless communication: | Two-way |
| Automatic registration of wireless devices: | via QR code |
| Max expandable wireless zones: | 100 |
| Total number of access codes: | 50 (app) |
| Dimensions: | 192 x 238 x 100 mm |
| Operating temperature: | 100 devices @ 8 BUS |
| Safety degree : | Grade 2 |
| Main power supply: | 220 VAC |
| Auxiliary power supply - battery: | Li-ion (built-in) |
| Max number of low current PGM outputs: | 99 (Ajax Relay) |
| Built-in power supply: | Yes |
| Max number of high current PGM outputs: | 99 (Ajax WallSwitch / Ajax Socket) |
| Max number of supervised wireless sirens: | 10 |
| CMS Event : | IP/GPRS 1 + 1 IP address |
| Programming software: | App |
| Report formats on CDS: | Ajax Translator, SIA-IP |
| Private call: | SMS / Call (requires SIM card) |
| SMS: | Yes |
| Communication and phone line monitoring: | Yes |
| GSM / GPRS communicator: | 2G x 2 SIM |
| IP Communicator: | integrated |
| Video verifications of alarm events: | Yes |
| Smartphone application: | Yes |
| Built-in auxiliary battery: | Yes |
| Operating conditions: | -10°C <> +40°C |
| Material: | ABS |
| Built-in RFID reader: | No |
| Integration of IP cameras/recorders: | 25 |
| Smarthome scenarios: | 32 |
