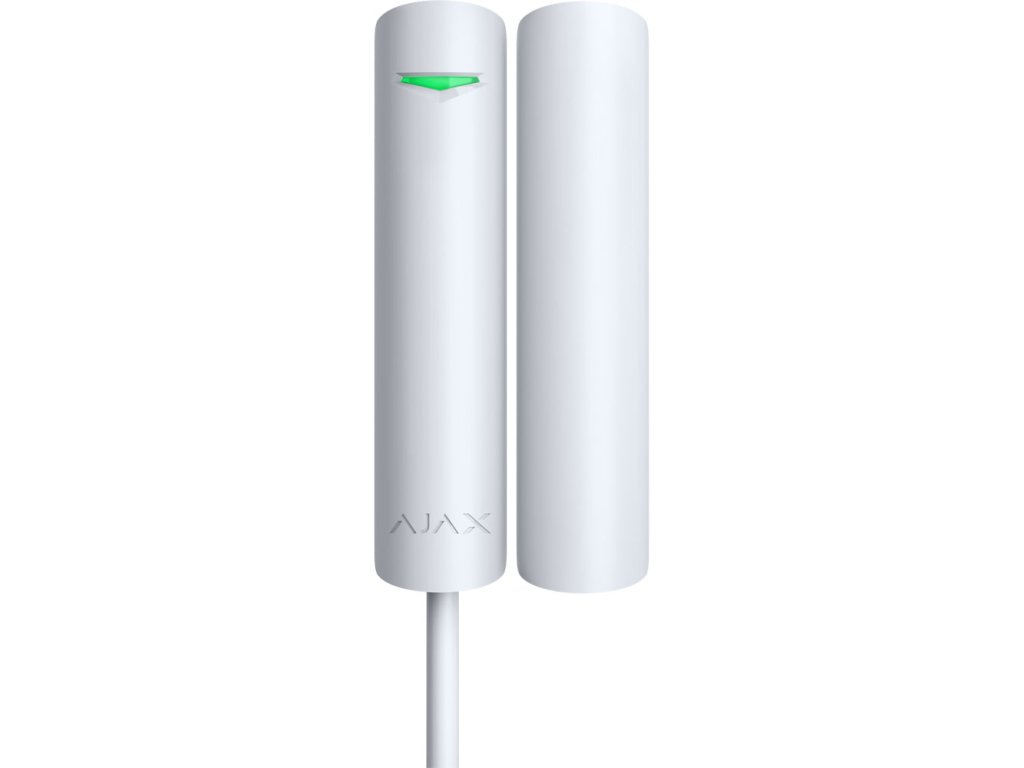

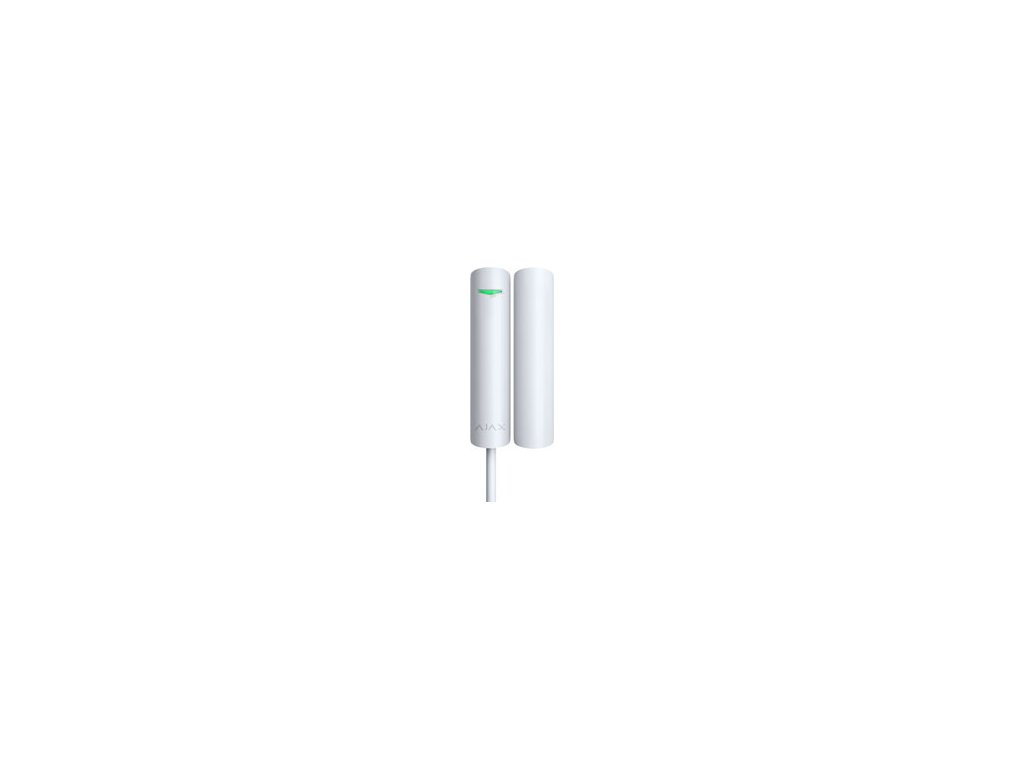

AJAX FIBRA DoorProtectPlus WH
Kód: 038764Podrobný popis
Magnetický kontakt pre dvere/okná, drôtový, konektor pre prídavný drôtový detektor s NC výstupom, detekcia vibrácií a náklonu, bielyDodatočné parametre
| Kategória: | Magnetické kontakty a PANIC tlačidlá |
|---|---|
| Detection: | Opening - Closing / Vibration / Inclination |
| Detection method: | 2 x REED / 1 x AUX |
| Detection range: | 20 mm |
| Installation: | Internal, Surface mounted |
| Manufacturer: | Ajax |
| Safety degree: | Grade 2 |
| Technology: | Wired addressable |
| Type / housing: | Plastic |
| Manufacturer: | AJAX |
| Technology: | Wired addressable |
| Dimensions: | 90.5 x 21 x 18.5 mm |
| Safety degree : | Grade 2 |
| Consumption : | < 55 µA |
| Power supply: | 24 VDC |
| Installation: | Surface mounted |
| Detection: | Opening - Closing / Vibration / Inclination |
| Detection method: | 2 x REED / 1 x AUX |
| Detection range: | 20 mm |
| LED signaling: | Yes |
| Tamper: | Yes |
| Weight : | 53 g |
| Alarm input: | NC |
| Type / housing: | Plastic |
