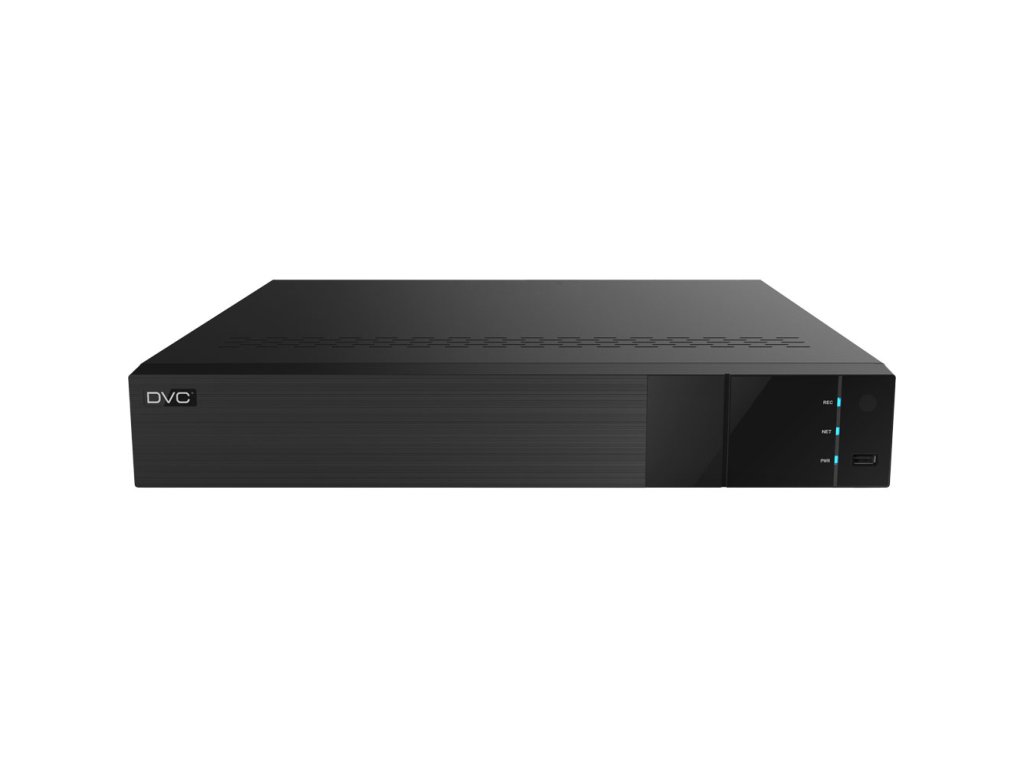

DRN-32164R
Kód: 044054Podrobný popis
32-kanálový NVR, podpora 16Mpx/8Mpx/6Mpx/4Mpx/1080p DVC IP kamier, 4 x HDD, quadplex, kompresia H.264/H.265, rýchlosť nahrávania 16Mpx, 8Mpx, 6Mpx, 4Mpx, 1080p pri 25 snímok za sekundu na kanál, 2xHDMI a VGA video výstup, napájanie 230V AC, korekcia obrazu rybieho oka.Dodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 4 x SATA (4 x 10 TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 16Mpx |
| Number of cameras: | 32 |
| Technology: | IP video |
| Compression: | H.264, H.265 |
| Processor: | HiSilicon Hi3536 |
| HDMI output: | HDMI 2K/4K x 2 |
| VGA output: | 1920 x 1080 |
| BNC output: | No |
| Spot output: | No |
| Recording 16 Mpx: | 16Mpx@25fps |
| Recording 8Mpx: | 8Mpx@25fps |
| Recording 6Mpx: | 6Mpx@25fps |
| Recording 4Mpx: | 4Mpx@25fps |
| Recording 2Mpx: | 2Mpx@25fps |
| Transmission bandwidth: | 256Mbps |
| Input bandwidth: | 320Mbps |
| Fisheye dewarping: | Yes |
| Supported IP camera manufacturers: | DVC IP |
| Audio: | 1 x out |
| Alarm inputs / outputs: | 16/4 |
| RS485: | Yes |
| LAN: | 2 x Giga Ethernet, RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS2.0 |
| Mobile access: | Android, iOS |
| Power supply: | 230V AC |
| Consumption : | <20W without HDD |
| Fan: | Yes |
| Dimensions: | 440 x 390 x 70 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 32 |
