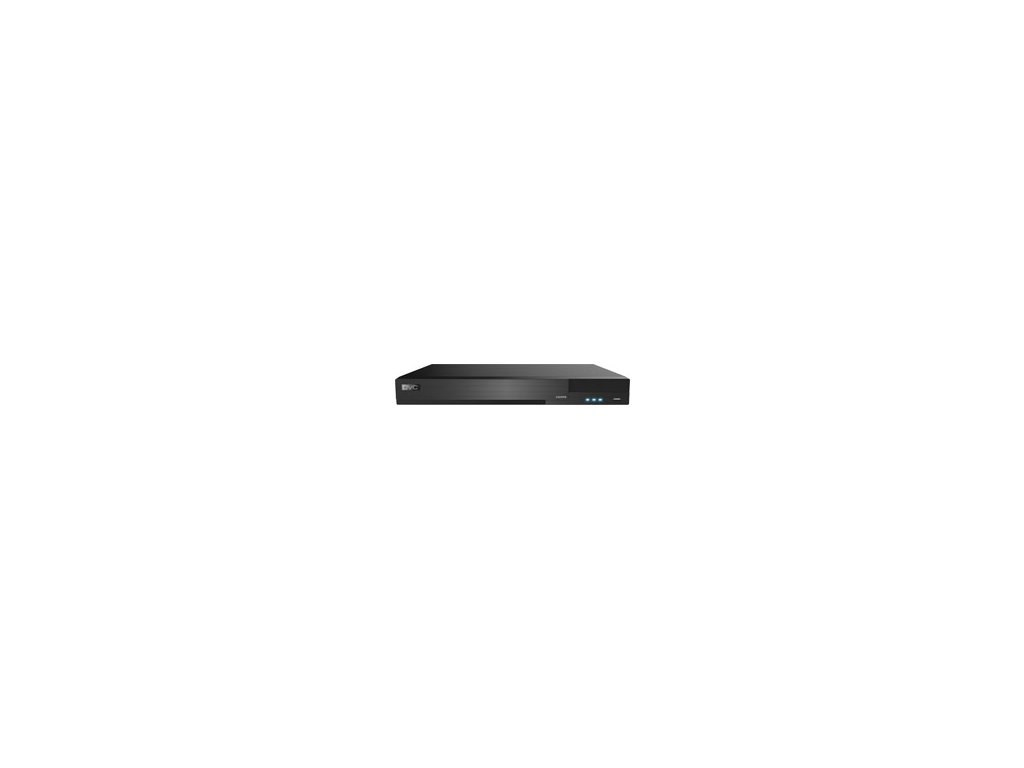

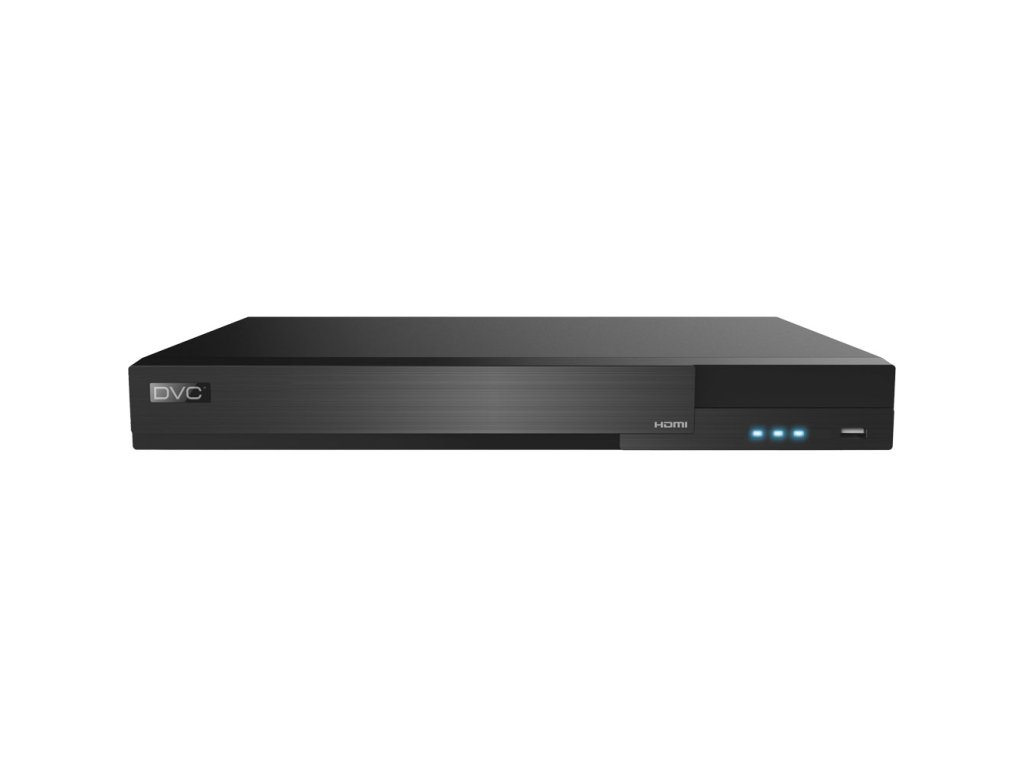

DRN-32162R
Kód: 043801Podrobný popis
Video záznamník pre 32IP kamier, podporuje max. 16M/12M/8M/4M/1080p/25fps na kanál, kompresia H.265, rozhranie SATA, 2 x HDD, HDMI 4K, HDMI, VGA, GUI 4.0, 2x Giga Ethernet RJ-45, šírka pásma 300Mbps, napájanie 12 VDC, adaptér je súčasťou balenia, podpora Fisheye...Dodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 2 x SATA (2 x 10 TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 16Mpx |
| Number of cameras: | 32 |
| Technology: | IP video |
| Compression: | H.265S/H.265+/H.265/H.264 |
| Processor: | Hisilicon Hi3535A |
| HDMI output: | HDMI 4K + HDMI |
| VGA output: | Yes |
| Video analytics: | Yes |
| Recording 12Mpx: | 12Mpx@25fps |
| Recording 8Mpx: | 8Mpx@25fps |
| Recording 5Mpx: | 5Mpx@25fps |
| Recording 4Mpx: | 4Mpx@25fps |
| Recording 3Mpx: | 3Mpx@25fps |
| Recording 2Mpx: | 2Mpx@25fps |
| Input bandwidth: | 320Mbps |
| Transmission bandwidth: | 256Mbps |
| Supported IP camera manufacturers: | DVC, Dahua, Hikvision, Vivotek |
| Audio: | 1 x out / 1 x in |
| Alarm inputs / outputs: | 8 |
| Alarm output: | 4 |
| RS485: | Yes |
| LAN: | 2 × Giga Ethernet, RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS2.0 |
| Mobile access: | Android, iOS |
| Power supply: | 12V DC |
| Consumption : | <20W without HDD |
| Fan: | Yes |
| Dimensions: | 380 x 268 x 52 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 32 |
