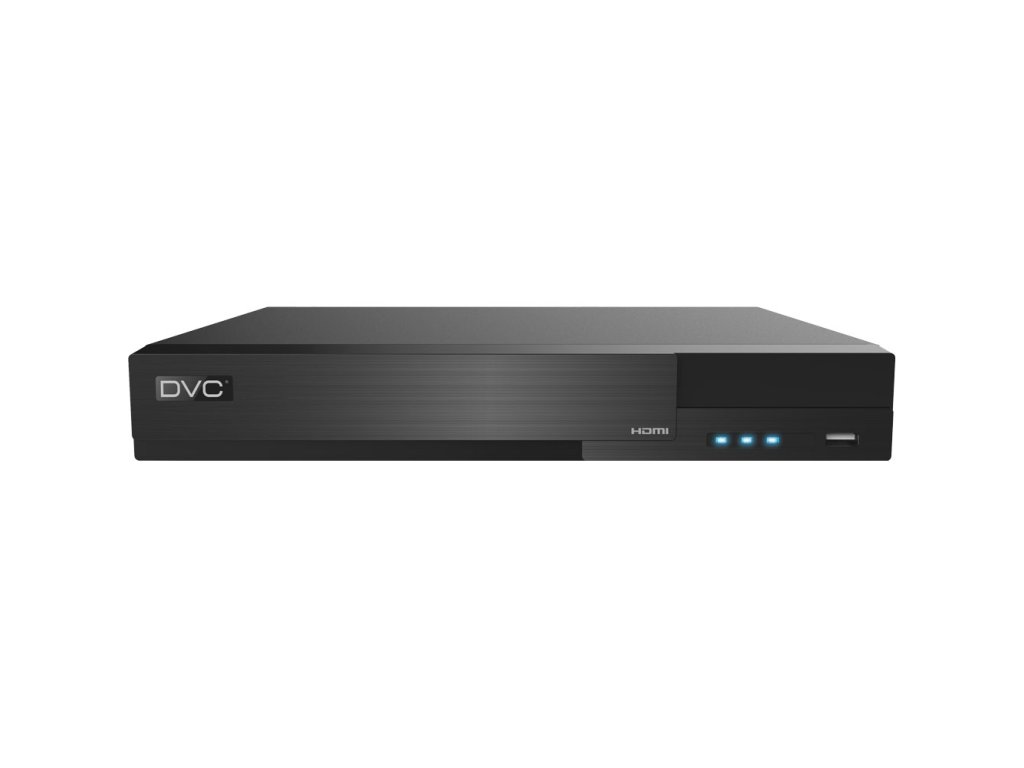

DRN-1681R2
Kód: 042223Súvisiaci tovar
Podrobný popis
Video záznamník pre 16 IP kamier, podporuje max. 8Mpix DVC IP kamery, HDD, quadplex, kompresia H.264/H.265, rýchlosť záznamu 8Mpix/25fps na kanál, šírka pásma 160Mb, HDMI, VGA, AUDIO IN, AUDIO OUT, LAN, napájanie 12VDCDodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 1 x SATA (1 x 8 TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 8Mpx |
| Number of cameras: | 16 |
| Technology: | IP video |
| Compression: | H.264, H.265 |
| Processor: | Novatek |
| HDMI output: | HDMI 2K/4K |
| VGA output: | Yes |
| BNC output: | No |
| Spot output: | No |
| Recording 8Mpx: | 8Mpx@25fps |
| Recording 5Mpx: | 5Mpx@25fps |
| Recording 4Mpx: | 4Mpx@25fps |
| Recording 3Mpx: | 3Mpx@25fps |
| Recording 2Mpx: | 2Mpx@25fps |
| Input bandwidth: | 112Mbps |
| Transmission bandwidth: | 112Mbps |
| Supported IP camera manufacturers: | DVC, Dahua, Hikvision |
| Audio: | 1 |
| Alarm inputs / outputs: | 16 (sa IP kamere) |
| Alarm output: | No |
| RS485: | 2 |
| LAN: | 10/100/1000 Mbps RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS1000 |
| Mobile access: | Android, iOS |
| Power supply: | 12V DC |
| Consumption : | <10W without HDD |
| Fan: | No |
| Dimensions: | 300 x 248 x 52 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 16 |
