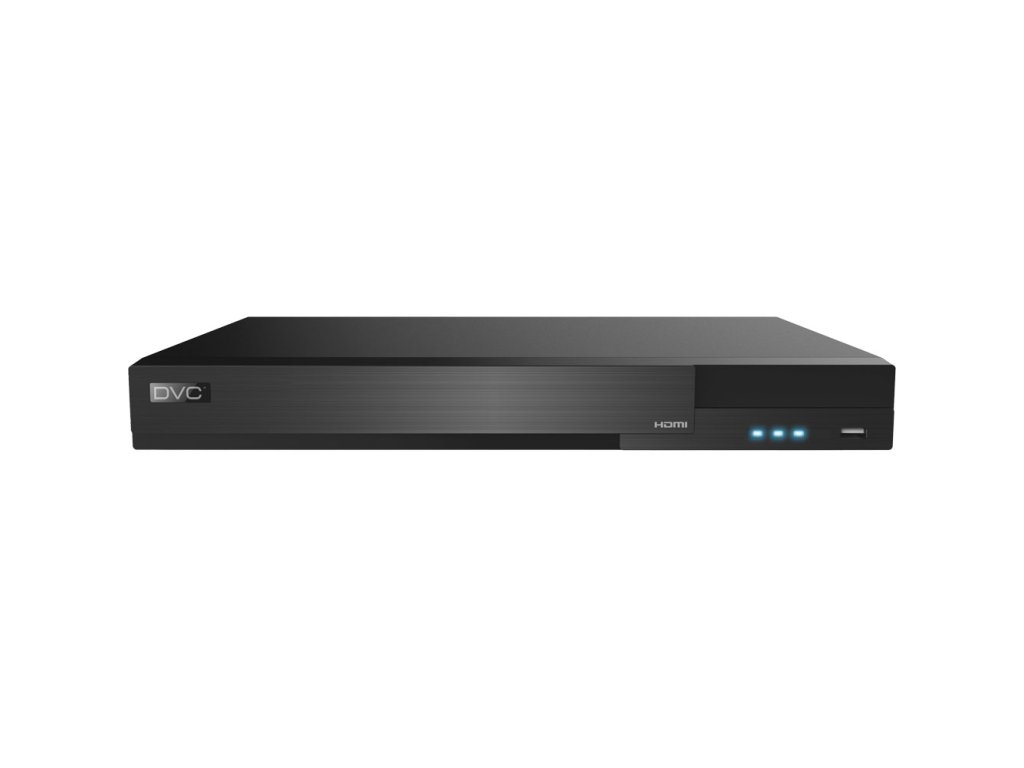

DRN-16162R
Kód: 043033Podrobný popis
16 kanálové NVR, 16Mpx, 2xHDD, HDMI a VGA video výstup, AI analytika, fisheye dewarping, 2x RJ45Dodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 2 × SATA (2 x 10TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 16Mpx |
| Number of cameras: | 16 |
| Technology: | IP video |
| Compression: | H.264, H.265 |
| Processor: | Novatek NT98633 |
| HDMI output: | HDMI 4K |
| VGA output: | 1920 x 1080 |
| BNC output: | No |
| Spot output: | No |
| Fisheye dewarping: | Yes |
| Video analytics: | Yes |
| Recording 16 Mpx: | 16Mpx@25fps |
| Recording 12Mpx: | 12Mpx@25fps |
| Recording 8Mpx: | 8Mpx@25fps |
| Recording 6Mpx: | 6Mpx@25fps |
| Recording 4Mpx: | 4Mpx@25fps |
| Recording 2Mpx: | 2Mpx@25fps |
| Input bandwidth: | 192Mbps |
| Transmission bandwidth: | 192Mbps |
| Supported IP camera manufacturers: | DVC, Dahua, Hikvision, Vivotek |
| Audio: | 1 x out |
| Alarm inputs / outputs: | 8 |
| Alarm output: | 4 |
| RS485: | Yes |
| LAN: | Giga Ethernet, RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS2.0 |
| Mobile access: | Android, iOS |
| Power supply: | 12V DC |
| Consumption : | <20W without HDD |
| Fan: | Yes |
| Dimensions: | 380 x 268 x 45 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 16 |
