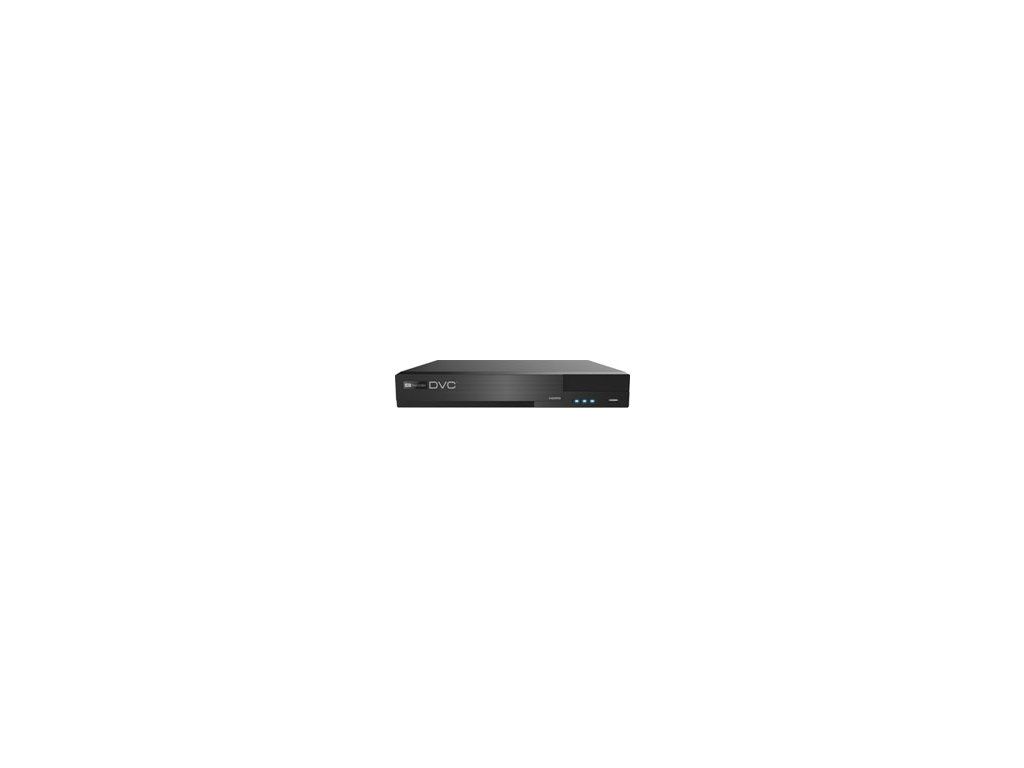

DRN-16122R
Kód: 041613Podrobný popis
Video záznamník pre 16 IP kamier, podporuje max. 12Mpix DVC IP kamery, 2x HDD, quadplex, kompresia H.264/H.265, rýchlosť záznamu 12Mpix/25fps na kanál, šírka pásma 160Mb, 2x HDMI, VGA, AUDIO IN, AUDIO OUT, 8x ALARM IN, 4x ALARM OUT, RS485, 2x LAN, napájanie 12VDCDodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 2 x SATA (2 x 10 TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 12Mpx |
| Number of cameras: | 16 |
| Manufacturer: | DVC |
| Technology: | IP video |
| Compression: | H.265S/H.265+/H.265/H.264 |
| Processor: | Hisilicon Hi3535A |
| Number of cameras: | 16 |
| HDD: | 2 x SATA (2 x 10 TB max.) |
| HDMI output: | HDMI 4K + HDMI |
| VGA output: | 1920 x 1080 |
| BNC output: | No |
| Spot output: | No |
| Fisheye dewarping: | Yes |
| Video analytics: | Yes |
| Max resolution: | 12Mpx |
| Recording 12Mpx: | 12Mpx@25fps |
| Recording 8Mpx: | 8Mpx@25fps |
| Recording 5Mpx: | 5Mpx@25fps |
| Recording 4Mpx: | 4Mpx@25fps |
| Recording 3Mpx: | 3Mpx@25fps |
| Recording 2Mpx: | 2Mpx@25fps |
| Input bandwidth: | 160Mbps |
| Transmission bandwidth: | 160Mbps |
| Supported IP camera manufacturers: | DVC, Dahua, Hikvision, Vivotek |
| Audio: | 1 x out |
| Alarm inputs / outputs: | 8 |
| Alarm output: | 4 |
| RS485: | Yes |
| LAN: | 2 × Giga Ethernet, RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS2.0 |
| Mobile access: | Android, iOS |
| Power supply: | 12V DC |
| Consumption : | <20W without HDD |
| Fan: | Yes |
| Dimensions: | 380 x 268 x 45 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 16 |
