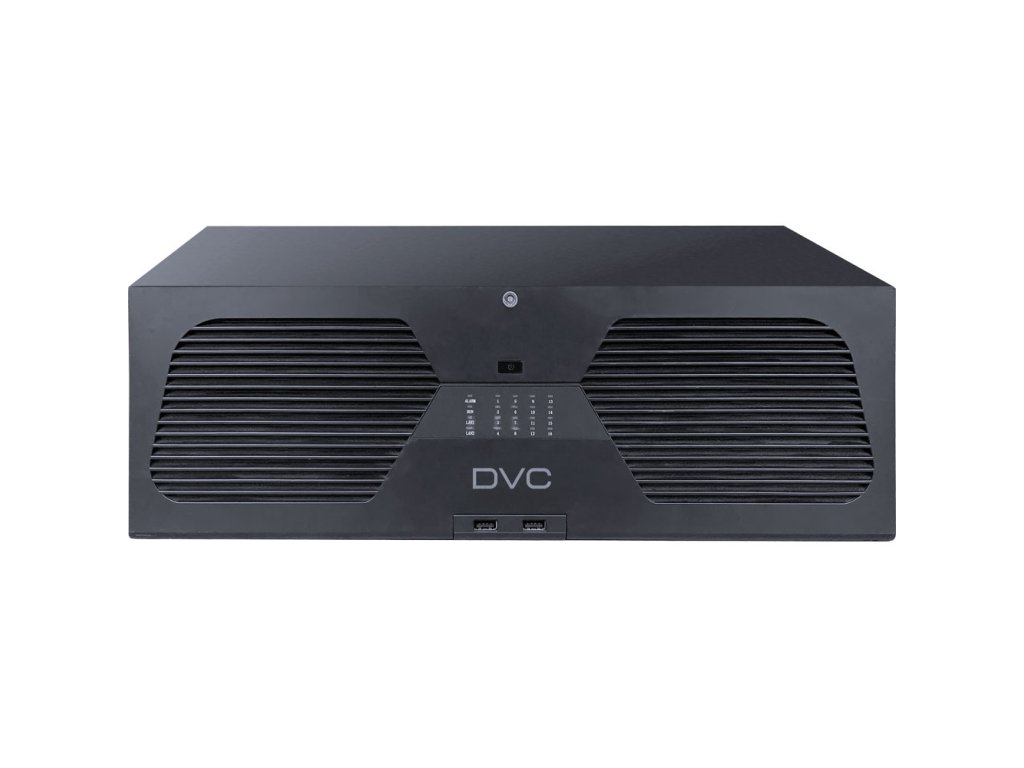

DRN-1281216RR2
Kód: 042227Podrobný popis
Video záznamník pre 128 IP kamier, podporuje max. 12Mpix DVC IP kamery, 16xHDD, RAID, quadplex, kompresia H.264/H.265, rýchlosť záznamu 12Mpx/25fps na kanál, šírka pásma 768Mb, 4x HDMI, VGA, AUDIO IN, AUDIO OUT, 24x ALARM IN, 8x ALARM OUT, RS485, 2x LAN, napájanie 230VACDodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 16 x SATA, 1 x eSATA (17 x 10 TB max.), RAID 0,1,5,6,10 |
| Manufacturer: | DVC |
| Max resolution: | 16Mpx |
| Number of cameras: | 128 |
| Technology: | IP video |
| Compression: | H.264, H.265 |
| Processor: | Hisilicon Hi3536 + Hisilicon Hi3559A |
| HDMI output: | HDMI 4K x 1, HDMI 2K x 3, VGA Full HD x 1 |
| VGA output: | 1920 x 1080 |
| BNC output: | No |
| Spot output: | No |
| Recording 16 Mpx: | 16Mpx@25fps |
| Recording 5Mpx: | 5Mpx@25fps |
| Recording 4Mpx: | 4Mpx@25fps |
| Recording 3Mpx: | 3Mpx@25fps |
| Recording 2Mpx: | 2Mpx@25fps |
| Input bandwidth: | 768Mbps |
| Transmission bandwidth: | 768Mbps |
| Fisheye dewarping: | Yes |
| Supported IP camera manufacturers: | DVC, Dahua, Hikvision |
| Audio: | 1 x out |
| Alarm inputs / outputs: | 24 |
| Alarm output: | 8 |
| RS485: | Yes |
| LAN: | 2 × Giga Ethernet, RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, Firefox, NVMS1000 |
| Mobile access: | Android, iOS |
| Power supply: | 230V AC |
| Consumption : | <50W without HDD |
| Fan: | Yes |
| Dimensions: | 437 x 483 x 143 mm |
| Operating temperature: | -15°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 128 |
