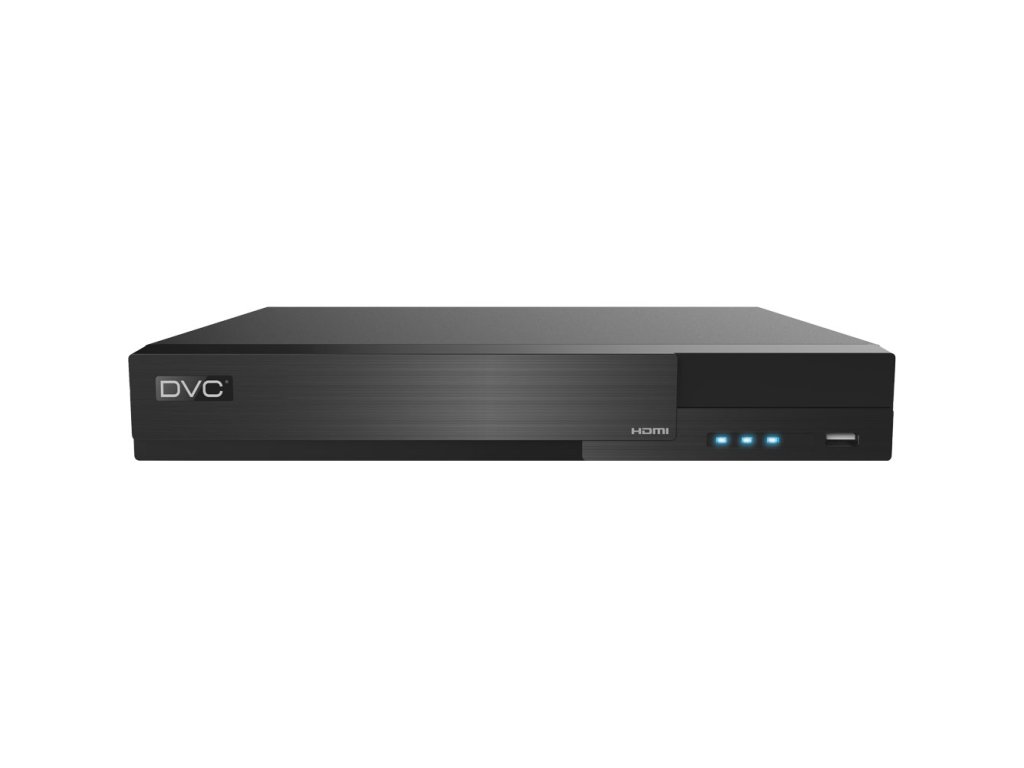

DRA-0451HAN2
Kód: 041610Podrobný popis
Video záznamník pre 4 ANALOG + 2 IP kamier, pentabrid, quadplex, podporuje max. 5Mpix, HDD, kompresia H.264/H.265, HDMI, VGA, AUDIO IN, AUDIO OUT, 4x ALARM IN, 1x ALARM OUT, RS485, LAN, napájanie 12VDCDodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 1 x SATA (1 x 8 TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 5Mpx Lite |
| Number of cameras: | 4 analogue (AHD/TVI/CVI) + 2 IP |
| Technology: | HD video |
| Compression: | H.264, H.265, H.265+ |
| Processor: | Novatek |
| AHD to IP channels: | 4 |
| HDMI output: | Yes |
| VGA output: | 1920 x 1080 |
| BNC output: | Yes |
| Spot output: | BNC |
| Recording 5Mpx Lite: | 5Mpx LITE@10fps |
| Recording 4Mpx Lite: | 4Mpx LITE@12fps |
| Recording 2Mpx LITE: | 2Mpx LITE@25fps |
| Recording 2Mpx: | 2Mpx@12fps |
| Recording 1Mpx: | 1Mpx@25fps |
| Recording WD1: | WD1@25fps |
| Recording IP: | 5Mpx, 4Mpx, 3Mpx, 2Mpx@25fps |
| Max. IP camera bit rate: | 4Mbps/per channel |
| Supported IP camera manufacturers: | DVC IP |
| Video analytics: | HD + IP kamere |
| Audio: | 1 x out |
| Alarm inputs / outputs: | 4 |
| Alarm output: | 1 |
| RS485: | Yes |
| LAN: | 10/100 Mbps RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS1000 |
| Mobile access: | Android, iOS |
| Power supply: | 12V DC |
| Consumption : | <10W without HDD |
| Fan: | No |
| Dimensions: | 300 x 248 x 52 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 4 |
