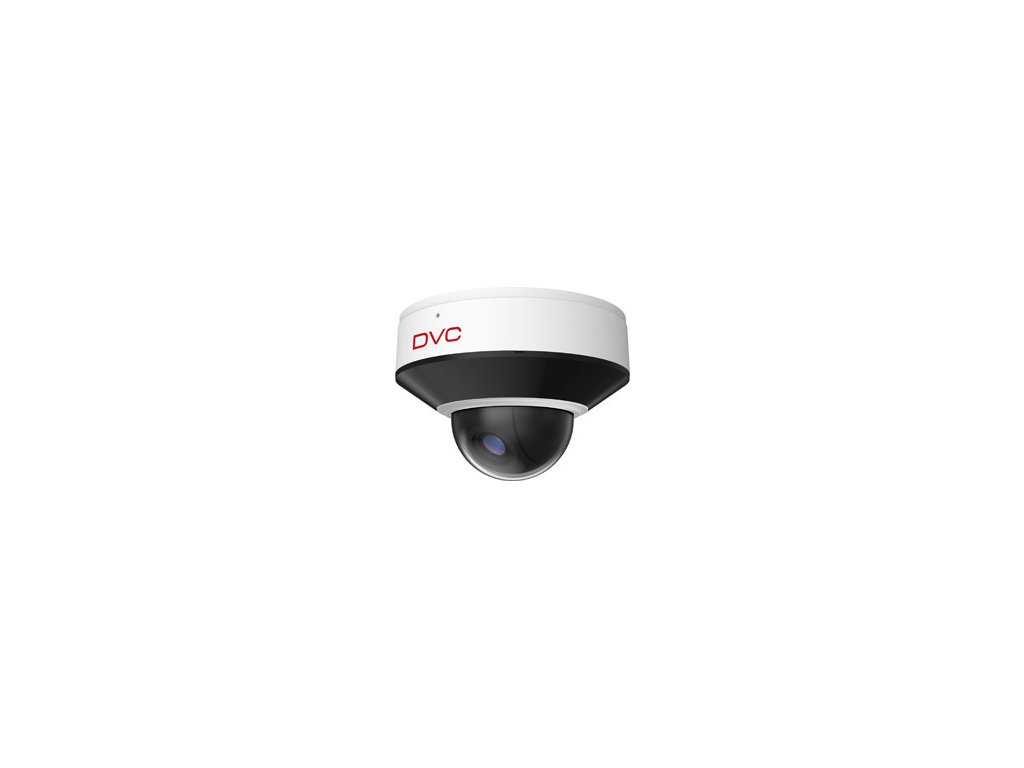

DCN-PM403X20
Kód: 041421Podrobný popis
1" PTZ IP videokamera, rozlíšenie 4Mpx@25fps, 3x optický zoom, objektív 3,18 - 7,42 mm, 360 stupňové predvoľby, rýchlosť otáčania 0,5° - 80°/s, SD karta, dosah IR LED až 20 m, napájanie 12VDC v súprave a PoE, Onvif, IP67/IK10, D-WDR, automatické sledovanie, Full Ai Video analýza.Dodatočné parametre
| Kategória: | Otočné kamery |
|---|---|
| IR: | up to 30 m |
| Lens: | 3.4 - 6.8mm, 2x zoom |
| Manufacturer: | DVC |
| Technology: | IP video |
| Optical sensor: | 1/2.7" SmartSens SC530 |
| DSP: | Novatek |
| Resolution: | 4Mpx, 3Mpx, 2Mpx, 1Mpx@25fps |
| Bit rate: | 64 Kbps - 16Mbps |
| Compression: | H.264, Smart H.265 |
| Housing : | 1" PTZ |
| Minimum illumination (Lux): | 0.01 lux@F1.6 |
| Onvif: | Yes |
| Video analytics: | AI: Person and vehicle tracking, line crossing, object tracking, space intrusion, facial recognition, exceptions, automatic tracking |
| SD card: | Up to 256Gb |
| Audio: | 1 x in / 1x out, built-in microphone |
| Number of IR LED: | 4 x Array Black glass IR LED |
| Day / night function: | ICR |
| Dynamic range: | D-WDR |
| HLC: | Yes |
| BLC: | Yes |
| Noise reduction: | 3D DNR |
| Alarm inputs / outputs: | 1/1 |
| Panoramic angle: | 0° - 355° |
| Vertical angle: | 15° - 155° |
| Panoramic speed: | 0.5° - 100°/sec |
| Tilt speed: | 0.5° - 100°/sec |
| Number of memories: | 300 |
| Number of patrolling: | 8 x 16 memory |
| Management: | TCP/IP |
| Antivandal housing: | Yes |
| IP protection: | IP67 |
| IK protection: | IK10 |
| Power supply: | 12V DC, PoE |
| Consumption : | <12W |
| Operating temperature: | -30°C - 60°C |
| Dimensions: | Ø 116 x 75 mm |
| Operating humidity: | 0% - 90% |
