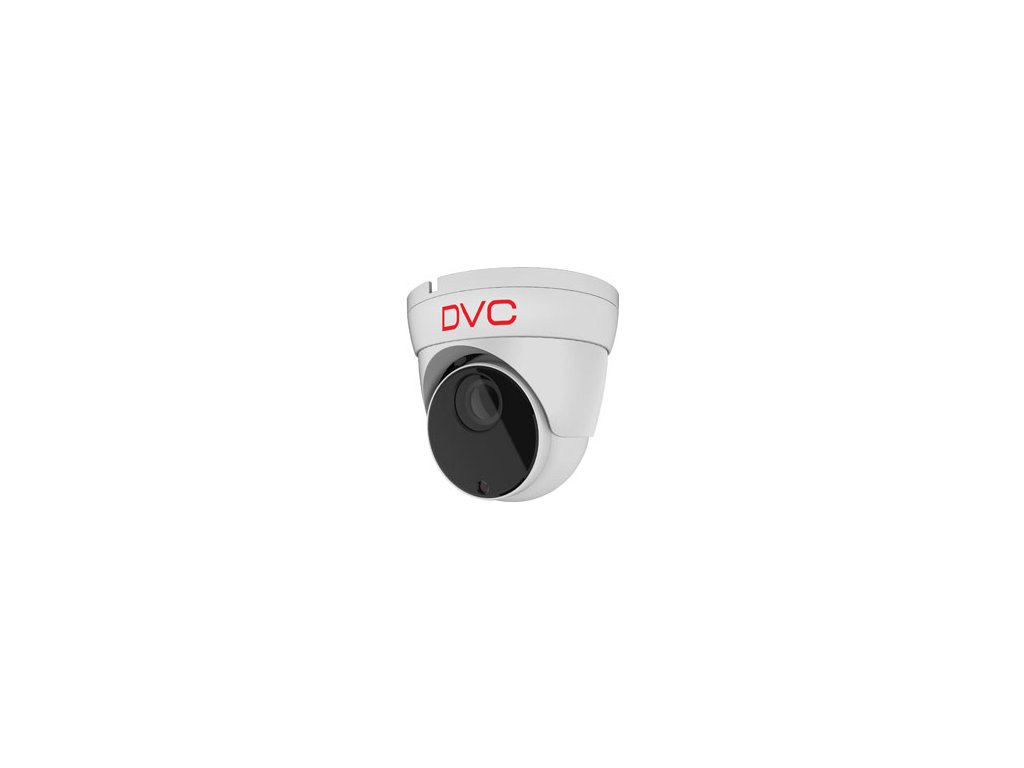

DCA-TV2145
Kód: 037106Podrobný popis
Analógová kamera, rozlíšenie 2Mpx, 1/2.7'' Smartsens CMOS, objektív 2.7 - 13.5 mm, varifocal, 0.05Lux@F1.2, IR LED 35-45m, 12VDC, IP67.Dodatočné parametre
| Kategória: | Kamery |
|---|---|
| Housing: | Turret |
| Lens type: | Varifocal/Moto-zoom |
| Manufacturer: | DVC |
| Max resolution: | 2Mpx |
| Technology: | Analog |
| Optical sensor: | 1/2.7'' SmartSens SC2238H |
| DSP: | Fulhan FH8536H |
| Lens: | 2.7 - 13.5mm |
| Minimum illumination (Lux): | 0.05 lux@F1.2 |
| Horizontal angle: | 109° - 32° |
| Video output: | VBS 1.0Vp-p/75 Ohm |
| IR: | 35-45m |
| Number of IR LED: | 30 |
| Day / night function: | ICR |
| OSD: | Control Over Coax (COC) |
| Dynamic range: | D-WDR |
| HLC: | Yes |
| BLC: | Yes |
| Image stabilization (AGC): | Yes |
| Noise reduction: | 2D DNR |
| 3-Axis: | Yes |
| Antivandal housing: | No |
| IP protection: | IP67 |
| IK protection: | No |
| Power supply: | 12V DC |
| Consumption : | <5W |
| Operating temperature: | -30°C - 60°C |
| Dimensions: | Ø 135.4 x 127.7 mm |
