DCA-TF2283V2
Kód: 040676Podrobný popis

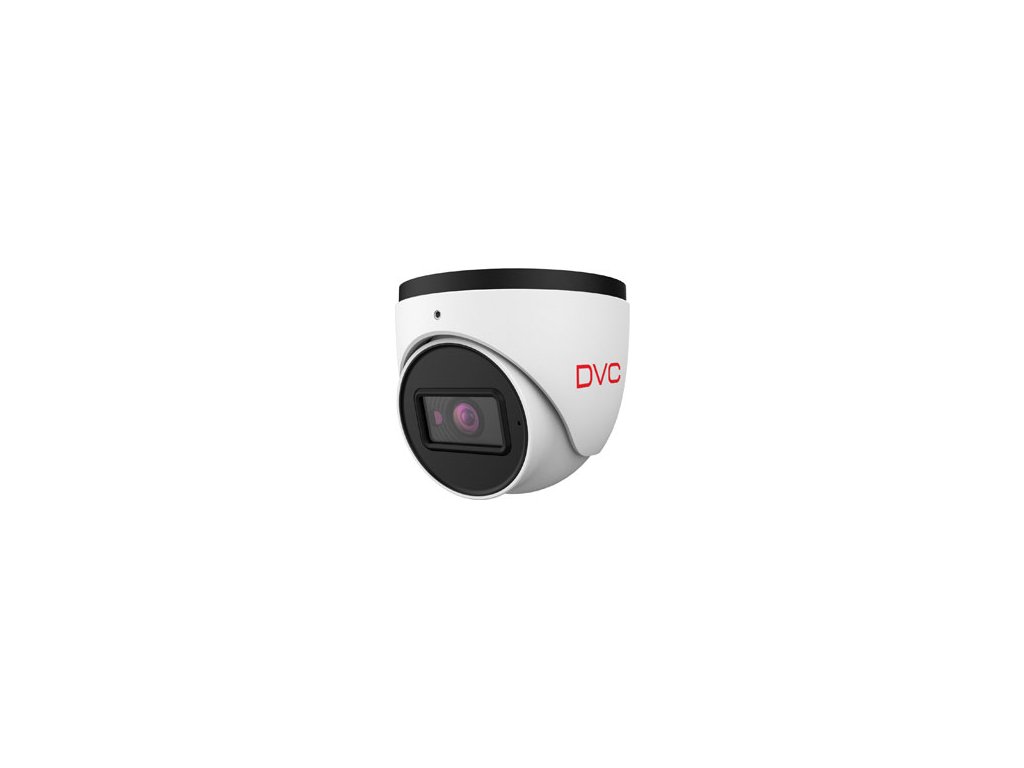

ANALOG kamera, TURRET, 2Mpix, objektív 2.8mm, D-WDR, IR osvetlenie 20-30m, IP67, 12VDC. Odporúčané podložky pod kameru: klasická interiér DAJ-40, klasická exteriér DA-38, horizontálna na stenu DAM-32, na stĺp DAM-35 + DAM-32.Dodatočné parametre
| Kategória: | Kamery |
|---|---|
| Housing: | Turret |
| Lens type: | 2.8 mm |
| Manufacturer: | DVC |
| Max resolution: | 2Mpx |
| Technology: | Analog |
| Optical sensor: | 1/2.8'' Smartsens SC233A |
| DSP: | Fulhan FH8536H |
| Resolution: | 2Mpx |
| Lens: | 2.8mm |
| Minimum illumination (Lux): | 0.005 lux@F1.2 |
| Video output: | VBS 1.0Vp-p/75 Ohm |
| Audio: | No |
| S/N ratio: | >52dB |
| IR: | 20-30m |
| Number of IR LED: | 10 x Array Black glass IR LED |
| Day / night function: | ICR |
| OSD: | Control Over Coax (COC) |
| Dynamic range: | D-WDR |
| HLC: | No |
| BLC: | Yes |
| Image stabilization (AGC): | Yes |
| Noise reduction: | 2D DNR |
| 3-Axis: | Yes |
| Antivandal housing: | Yes |
| IP protection: | IP67 |
| IK protection: | IK10 |
| Power supply: | 12V DC |
| Consumption : | <4W |
| Operating temperature: | -30°C - 50°C |
| Dimensions: | Ø 94.8 x 82.8 mm |
