Comunello Kit FORT 400/24V HP
Kód: 040781Podrobný popis

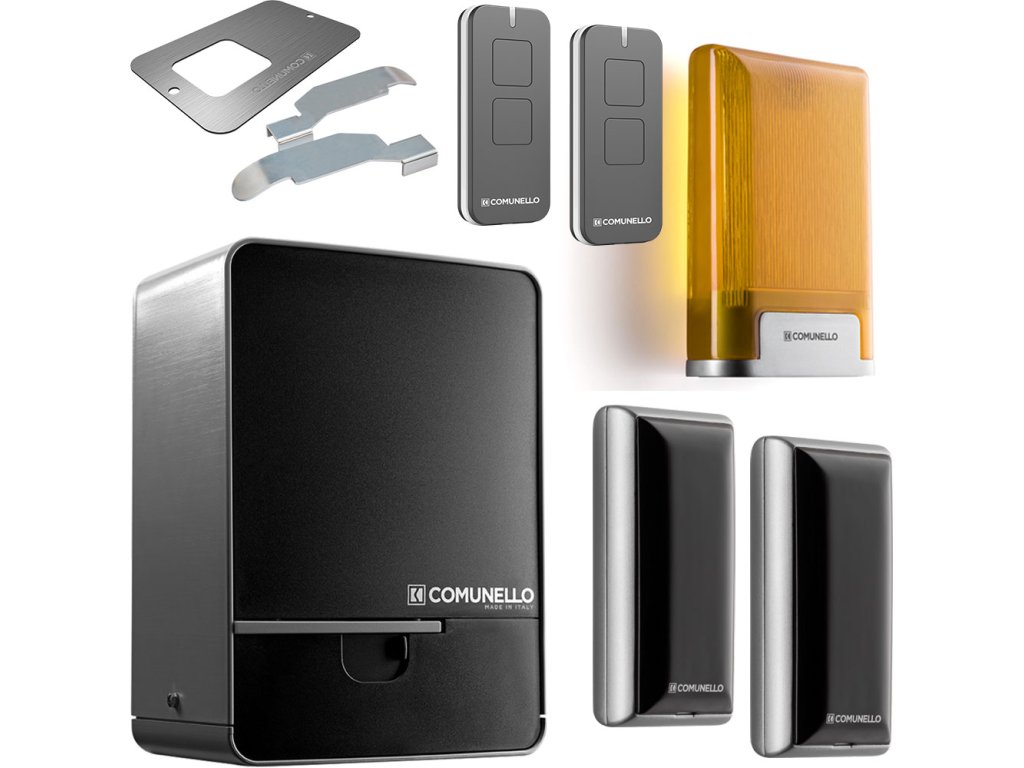

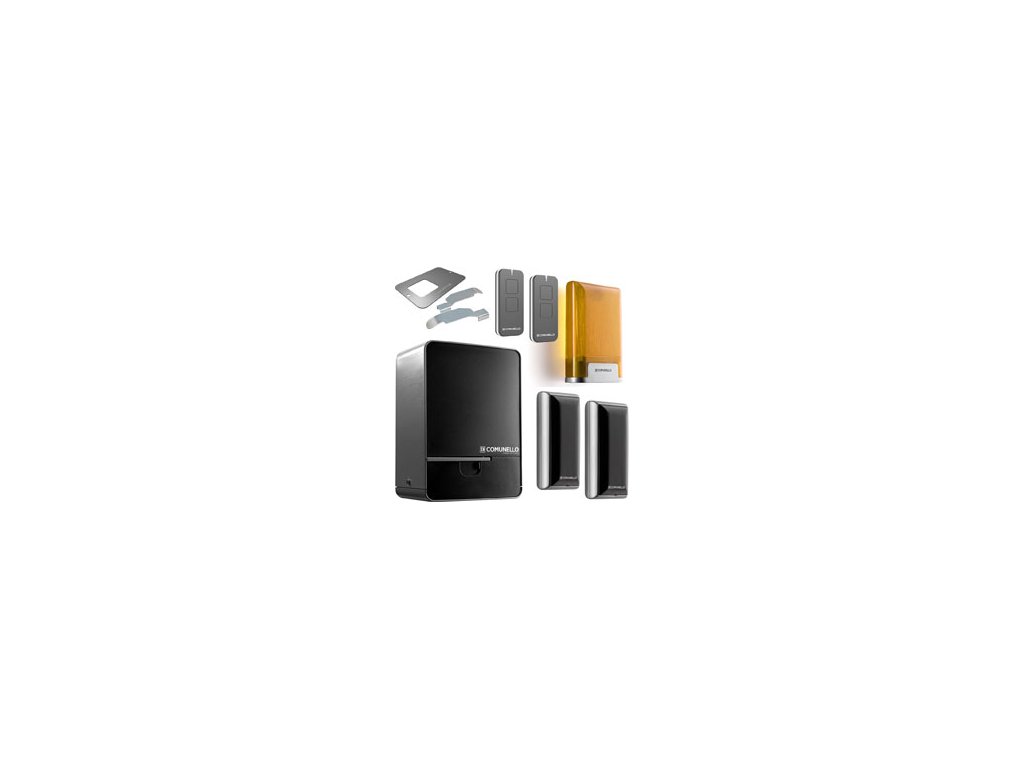

FORT 400 24VDC FULL - súprava na elektrické ovládanie posuvnej brány - max. 400kg (1x motor, 1x riadiaca jednotka, 1x pár fotobuniek, 2x diaľkové ovládače, 1x LED maják, stojan na upevnenie motora, zámok s kľúčom, mechanické spínače)Dodatočné parametre
| Kategória: | Súpravy pre brány |
|---|---|
| Consumption: | 70W |
| Dimensions: | 325x237x199,6 |
| Installation: | Surface mounted |
| Kit type: | Sliding door |
| Manufacturer: | COMUNELLO |
| Max door weight (kg): | 400 |
| Mechanical protection degree: | IP 44 |
| Motor power supply: | 24 Vdc |
| Opening hours: | 0,26m/s |
| Opening intensity: | Frequent use |
| Operating temperature: | -20°C - 55°C |
| Power supply: | 230 VAC |
| Manufacturer: | COMUNELLO |
| Kit type: | Sliding door |
| Installation: | Surface mounted |
| Max door weight (kg): | 400 |
| Opening intensity: | Frequent use |
| Maximum thrust: | 400N |
| Opening hours: | 0,26m/s |
| Power supply: | 230 VAC |
| Motor power supply: | 24 Vdc |
| Consumption : | 70W |
| Operating temperature: | -20°C - 55°C |
| Mechanical protection degree : | IP 44 |
| IEC classification: | 2 |
| Lath type: | M4 |
| Weight: | 8,9kg |
| Dimensions: | 325x237x199,6 |
