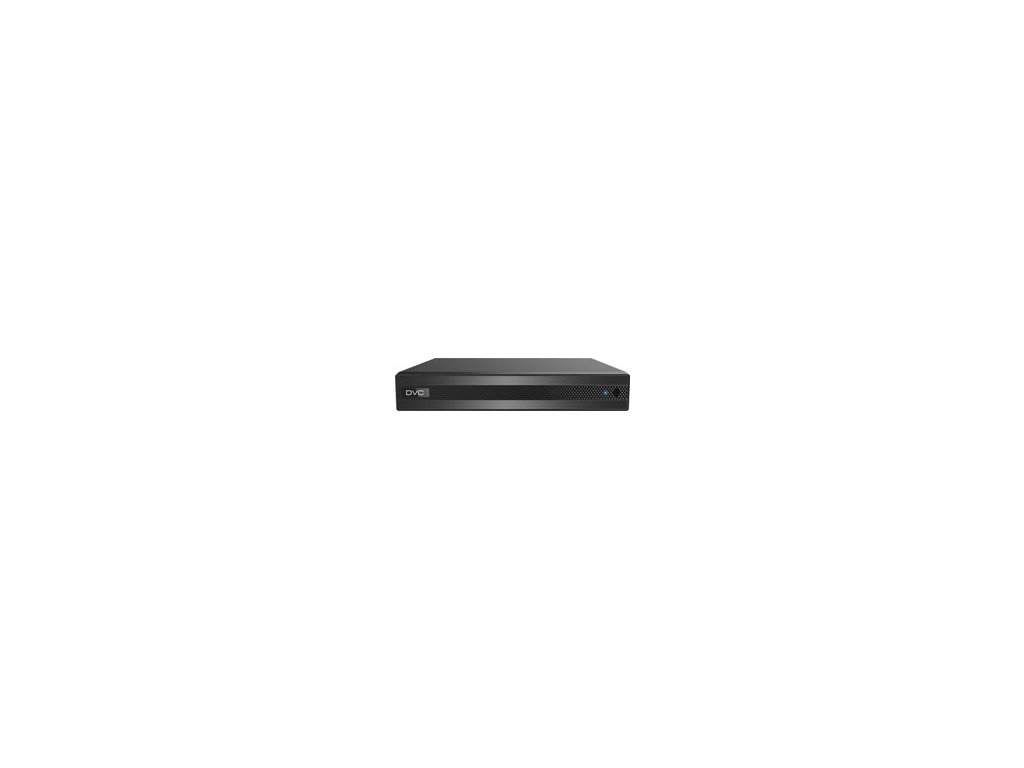

DRA-0421RN
Kód: 037310Podrobný popis
Video záznamník pre 4 ANALOG + 2 IP kamery, pentabrid, quadplex, podporuje max. 2Mpix, HDD, kompresia H.264/H.265, HDMI, VGA, AUDIO IN, AUDIO OUT, LAN, napájanie 12VDCDodatočné parametre
| Kategória: | Záznamníky |
|---|---|
| HDD: | 1 x SATA (1 x 8 TB max.) |
| Manufacturer: | DVC |
| Max resolution: | 1080p LITE |
| Number of cameras: | 4 analogue (AHD/TVI/CVI) + 2 IP |
| Technology: | HD video |
| Compression: | H.265 |
| Processor: | Novatek |
| HDMI output: | Yes |
| VGA output: | 1920 x 1080 |
| BNC output: | No |
| Spot output: | No |
| Recording 2Mpx LITE: | 2Mpx LITE@25fps |
| Recording IP: | 2Mpx@25fps |
| Max. IP camera bit rate: | 4Mbps/per channel |
| Supported IP camera manufacturers: | DVC IP |
| Audio: | 1 x out |
| Alarm inputs / outputs: | No |
| Alarm output: | No |
| RS485: | No |
| LAN: | 10/100 Mbps RJ-45 |
| Dual stream: | Yes |
| DVR control: | Web browser, mouse |
| Network access : | IE, NVMS2.0 |
| Mobile access: | Android, iOS |
| Power supply: | 12V DC |
| Consumption : | <5W without HDD |
| Fan: | No |
| Dimensions: | 255 x 222 x 42 mm |
| Operating temperature: | -10°C - 50°C |
| Operating humidity: | 10% - 90% |
| Channel number: | 4 |
